0.42mm Thickness Shielding ED Pure Copper Sheet Roll

Beijing Silk Road Enterprise Management Services Co.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

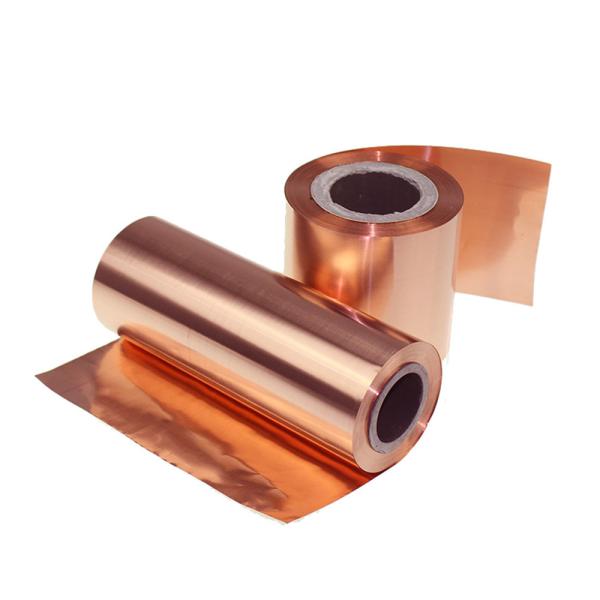

0.42mm Thickness Shielding ED Pure Copper Sheet Roll

Brand Name : OEM

Place of Origin : China

Supply Ability : 550T Per Month

Packaging Details : Exporting Wooden Case

MOQ : 50kg

Price : Negotiable

Certification : ISO / SGS / RoHS

Delivery Time : 10 - 15 Days

Payment Terms : L/C, T/T

Application : MRI/RF room and Faraday

Width : 600mm

Material : pure copper

Grade : Pure Copper

Cu (Min) : 99.99%

Alloy Or Not : Non-alloy

Shape : roll

Certificate : ISO 9001:2008, IPC-4562, RoHS

Cut roll width : Customized

Length : 100m

Type : ED Copper Foil MRI Room

Surface : Polished

Name : shielding ED copper foil

Contact Now

0.42mm Thickness Shielding ED Pure Copper Sheet Roll
Product Description

The copper foil is widely used in healthcare area especially the construction of the MRI/RF Room and Faraday Cage because of good EMI/RF shielding performance.

We can provide different size and thickness copper foil with roll or sheet shape. 3ounce, 4 ounce, 5ounce copper foil are usually be used to cover the wall and ceiling,12oz is hot sale to cover the floor. Plus,we are able to support customized scale to meet the need.

Product name

ED copper foil

Copper foil thickness

0.008mm - 0.42mm

Copper type

ED Copper Foil Li-ion Battery, MRI Room

Copper content

≥ 99.9%

Certification

ISO 9001:2008, IPC-4562, RoHS

MOQ

One roll, about 250kg

Cut roll width

Customized

Coil length and weight

on request

Characteristics

High Temperature Elongation, Fine and Uniform Crystal Structure

Payment Term

T/T in advance, Western Union, L/C

Flatness

good flatness close to 100%, without stress or others that can influence the production

Application

battery, precision electronics, electrical appliances, medical equipment...

Characteristic
  • High performance,vertically-supported modular enclosure

  • Reinforced well design

  • Lightweight

  • Installed in more MRI sites worldwide than any other shield system

  • Easily and quickly modified on site should a problem or change occur

  • Copper serves as an eddy current shield for MRI protection

copper application

We can provide the specific single-matte, double-matte, and double-shiny ED Copper for the Li-ion Battery.

What is more, HTE (high temperature elongation) from 1/2oz to 2oz thickness copper foil and VLP-HTE-HF( very-low-profile, high temperature elongation, and heavy ED Copper Foils, used in PCB, which the max dimension is 1295mm x 2450mm.

0.42mm Thickness Shielding ED Pure Copper Sheet Roll

FAQ

Is it the rolled copper foils or electrolytic copper foils?

It is ED Copper Foils.

So what the differences between them?

ED copper foil is electrolysis producing process. It is produced by electrolytic deposition. In detailed.

It is seperated out the Cu+ from CuSO4, and after antioxidant and roughing treatment to produce it.

During the producing process, its solution comply with the requirments of the RoHS, and without environment pollution.

Rolled Copper Foils product is by different methods, which also limit its width which can not be max width 1380mm.

Our Services

Our service tenet: Creating value for customers

Our service goal: Beyond customer’s requirement

With the technology progress,we provide whole consult system as well as upgrad our service for the developing need.Improve the communication efficiency and the quality of service , via optimizing the process of projects.


Product Tags:

0.42mm Copper Sheet Roll



ED Copper Sheet Roll



12oz Copper Sheet Roll


Quality 0.42mm Thickness Shielding ED Pure Copper Sheet Roll for sale

0.42mm Thickness Shielding ED Pure Copper Sheet Roll Images
